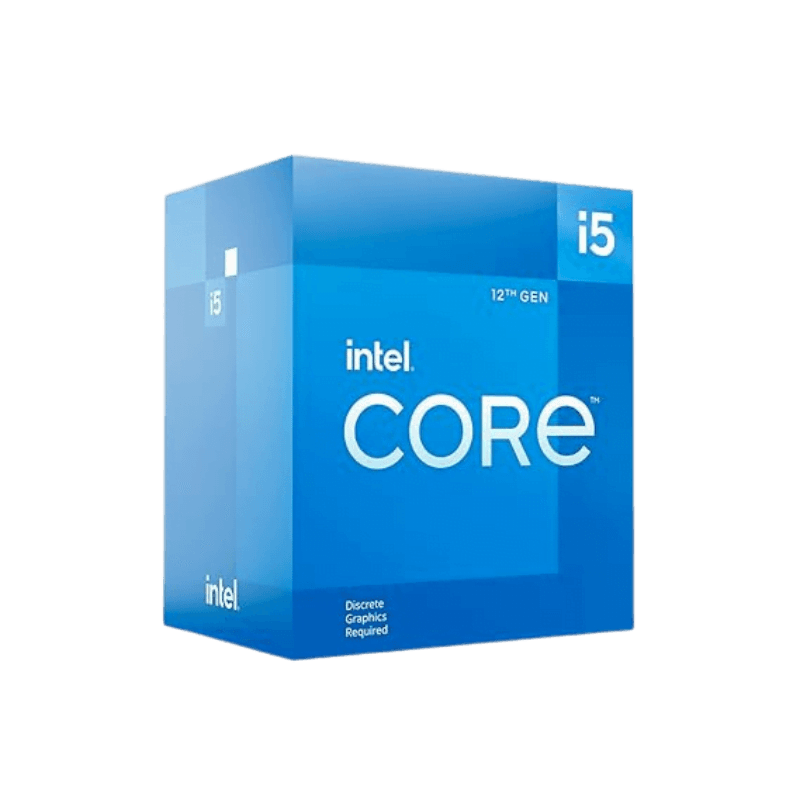

Intel Core-i5 12400 Processor

The Intel Core i5-12400 is part of the 12th Generation Intel Core processors, based on the Alder Lake-S architecture. Let’s dive into its key specifications:

• Cores and Threads: It features 6 cores and 12 threads, thanks to Intel Hyper-Threading. This effectively doubles the core count, enhancing multitasking capabilities.
• Clock Speeds: The processor operates at a base frequency of 2.50 GHz and can boost up to 4.40 GHz, depending on the workload.
• Cache: It boasts 18 MB of L3 cache and 7.5 MB of L2 cache.
• Graphics: The Intel UHD Graphics 730 provides decent integrated graphics performance for everyday tasks and light gaming.
• Memory Support: It supports up to 128 GB of memory, with options for DDR5 4800 MT/s or DDR4 3200 MT/s.
• Form Factor: The processor uses the FCLGA1700 socket.
• Power Efficiency: With a 65 W base power and a maximum turbo power of 117 W, it strikes a balance between performance and efficiency.

In summary, the Intel Core i5-12400 is a versatile processor suitable for desktop systems, offering a good blend of performance, power efficiency, and integrated graphics capabilities. Whether you’re working, streaming, or enjoying light gaming, this processor has you covered! 🚀🔥

For more detailed specifications, you can refer to the official Intel product page

• Total Cores : 6
• # of Performance-cores : 6
• # of Efficient-cores : 0
• Total Threads : 12
• Max Turbo Frequency : 4.40 GHz
• Performance-core Max Turbo Frequency : 4.40 GHz
• Performance-core Base Frequency : 2.50 GHz
• Cache : 18 MB Intel® Smart Cache
• Total L2 Cache : 7.5 MB
• Processor Base Power : 65 W
• Maximum Turbo Power : 117 W

• Max Memory Size (dependent on memory type) : 128 GB
• Memory Types  : Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s
• Max # of Memory Channels : 2 Nos.
• Max Memory Bandwidth : 76.8 GB/s

• GPU Name^‡ : Intel® UHD Graphics 730
• Graphics Base Frequency : 300 MHz
• Graphics Max Dynamic Frequency : 1.45 GHz
• Graphics Output : eDP 1.4b, DP 1.4a, HDMI 2.1
• Execution Units : 24
• Max Resolution (HDMI)^‡: 4096 x 2160 @ 60Hz
• Max Resolution (DP)‡ : 7680 x 4320 @ 60Hz
• Max Resolution (eDP – Integrated Flat Panel)‡ : 5120 x 3200 @ 120Hz
• DirectX* Support : 12
• OpenGL* Support : 4.5
• OpenCL* Support : 3.0
• Multi-Format Codec Engines : 1
• Intel® Quick Sync Video : Yes
• Intel® Clear Video HD Technology : Yes
• # of Displays Supported ^‡ : 4
• Device ID : 0x4692 / 0x4682
