Description

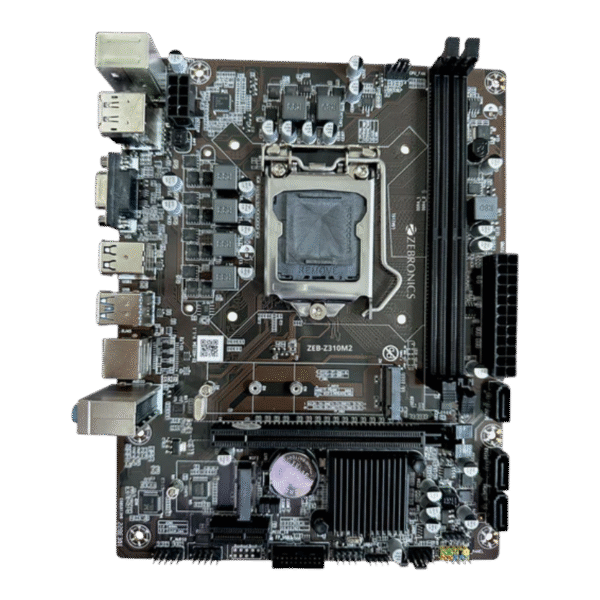

Zebronics Z310 Motherboard Technical Specifications :
| Supported CPU | Intel i3/i5/i7/Celeron/Pentium, 8th & 9th generation series processor in LGA 1151 | |
| Chipset | Intel H310 Chipset | |
| Memory Supported | 2 no’s DDR4 Memory slots Memory up to 32GB Supports DDR4 2133/2400/2666 MHz memory” | |
| BIOS | AMI BIOS | |
| I/O Interface | 1 x HDMI port, 1 x VGA Port, 2 x USB 2.0 Port,2 x USB 3.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio – 5.1 audio, 1 x PS/2 keyboard port and 1 x PS/2 Mouse port |
|
| Onboard Interface | 1x 24 pin ATX Power Connector, 1 x 8 Pin ATX 12V Power Connector, 2 x USB 3.0 header 2 x USB 2.0 header,1 x Front Audio Connector, 3 x SATA 3.0, 1 x COM pin | |
| Integrated Sound | With 5.1-Channel Audio | |
| Integrated LAN | Supports RTL8111G 10/100/1000 Mbps Ethernet LAN | |
| Expansion Slot | 1 x PCI Express x16 slot,1 x NVMe M.2 slot | |
| Form Factor | Micro-ATX | |
| Country of Origin | People’s Republic of China |
Package contents : |
||
| ZEB-H310 Motherboard | 1 U | |
| SATA Cable | 1 U | |
| I/O Backplate | 1 U | |
| Driver Disc | 1 U | |
| User Manual | 1 U |
