Description

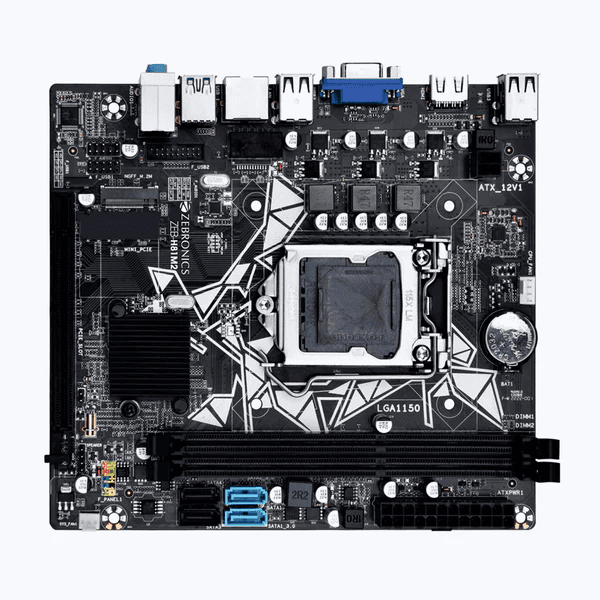

Zebronics H81 Motherboard Specifications :
| Supported CPU | Socket 1150 / Intel Pentium / Celeron / i3 / i5 / i7 (4th & 5th Generation) Series Processors |
|
| Chipset | Intel H81 Chipset | |
| Memory supported | 2 x DDR3 DIMM memory slots, Memory up to 16GB, Supports DDR3 1066/1333/1600 MHz memory |
|
| BIOS | AMI BIOS | |
| I/O Interface | 1 x HDMI, 1 x VGA, 4 x USB2.0, 2 x USB3.0, 1 x Rj45, 1x 3-in-1 Audio Jacks | |
| Onboard interface | 1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 2 x USB 2.0 Header, 1 x Front Audio Connector, 1 x Front Panel Connector, 1 x Speaker Connector, 1 x 4 pin CPU fan connector, 1 x SYS Fan Connector, 2 x SATA 2.0 Ports, 2 x SATA3.0 Ports , 1 x clear CMOS Connector., 1x M.2 Slot |
|
| Integrated Sound | With 5.1-Channel HD Audio | |
| Integrated LAN | Supports RTL8106E 10/100 Mbps Ethernet LAN | |
| Expansion Slot | 1 x PCI Express 2.0 x16 size slot | |
| Form factor | Micro-ATX | |
| Country of Origin | People’s Republic of China |
