Description

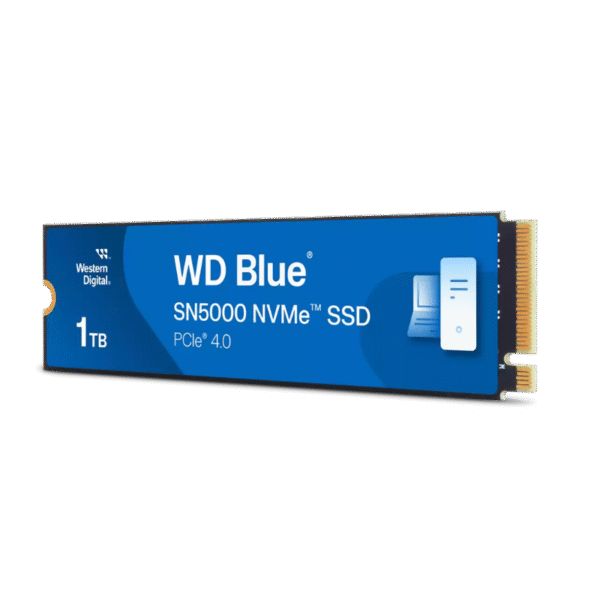

WD Blue SN5000 1TB NVMe SSD Technical Specifications :
| Specification | Details |
|---|---|
| Model Number | WDS100T4B0E |
| Capacity | 1TB (1000 GB) |
| Form Factor | M.2 2280 (Single-Sided) |
| Interface | PCIe Gen4 x4 |
| Protocol | NVMe 1.4 |
| NAND Flash Type | 112-layer 3D TLC NAND (Kioxia BiCS5) |
| Controller | WD Polaris 3 (A101-000172-A1) |
| DRAM Cache | None (uses Host Memory Buffer – HMB) |
| Sequential Read Speed | Up to 5,150 MB/s |
| Sequential Write Speed | Up to 4,900 MB/s |
| Random Read (4KB, QD32) | Up to 730,000 IOPS |
| Random Write (4KB, QD32) | Up to 770,000 IOPS |
| Endurance (TBW) | 600 TBW |
| MTTF / MTBF | 1.75 million hours |
| Power Consumption | Avg Active: 75mW<br>Max Avg: 6.3W<br>Sleep: 5mW |
| Operating Temperature | 0°C to 85°C (32°F to 185°F) |
| Non-Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Shock Resistance | 1,500G @ 0.5 ms (half sine) |
| Vibration Resistance | Operating: 5.0 gRMS (10–2000 Hz)<br>Non-Operating: 4.9 gRMS (7–800 Hz) |
| SLC Cache | Yes (pseudo-SLC for burst performance) |
| Encryption Support | TCG Pyrite |
| Software Support | WD Dashboard, Acronis True Image for WD |
| Warranty | 5 Years Limited Warranty |
| Special Features | TRIM, SMART, HMB, PS5 Compatible |
