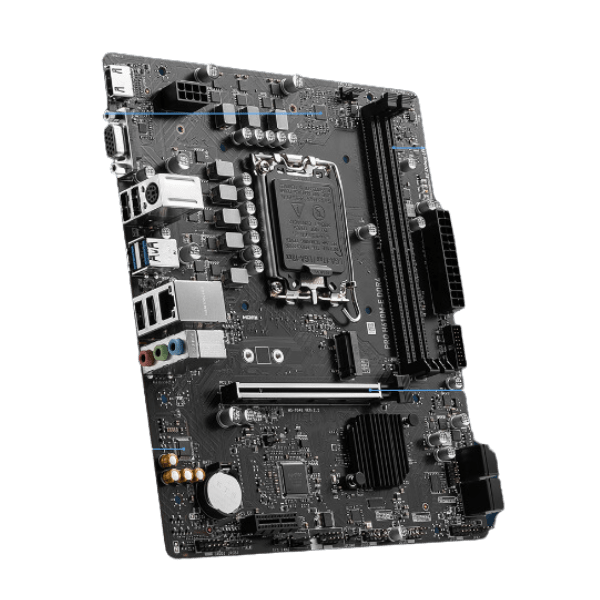

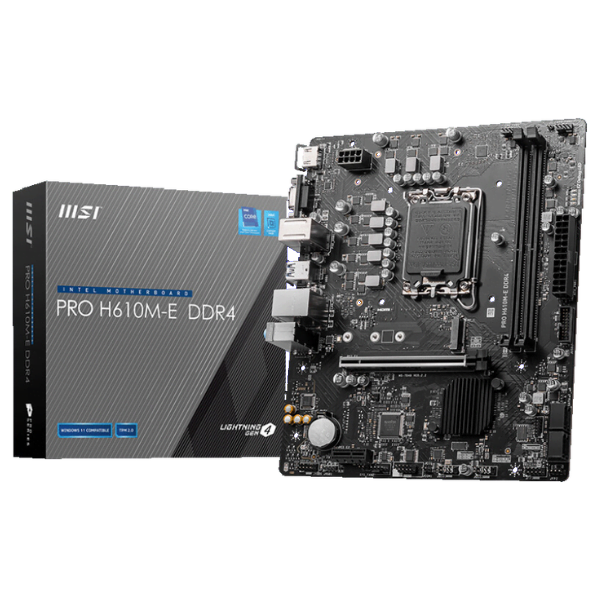

MSI PRO H610M-E DDR4 Motherboard Technical Specifications :
| Feature | Details |
|---|---|
| Chipset | Intel H610 |
| CPU Support | Intel® Core™ 12th/13th Gen Processors, Intel® Pentium® Gold and Celeron® Processors (LGA 1700) |
| Memory Support | 2 x DDR4 slots, up to 64GB, speeds up to 3200 MHz (OC mode) |
| Graphics Interface | 1 x HDMI™ 1.4 (4K @ 30Hz), 1 x VGA (2048×1536 @ 50Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| Storage | 1 x M.2 slot (PCIe 3.0 x4/SATA), 4 x SATA 6Gb/s ports |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| USB Ports | Rear: 4 x USB 2.0, 2 x USB 3.2 Gen 1; Front: 4 x USB 2.0, 2 x USB 3.2 Gen 1 |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Form Factor | Micro-ATX |
| Operating System Support | Windows® 11 64-bit, Windows® 10 64-bit |
